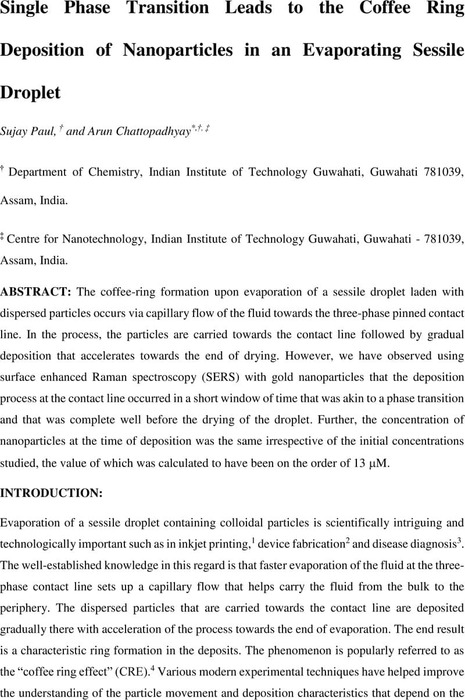

Single Phase Transition Leads to the Coffee Ring Deposition of Nanoparticles in an Evaporating Sessile Droplet

05 June 2023, Version 1
This content is a preprint and has not undergone peer review at the time of posting.


The coffee-ring formation upon evaporation of a sessile droplet laden with dispersed particles occurs via capillary flow of the fluid towards the three-phase pinned contact line. In the process, the particles are carried towards the contact line followed by gradual deposition that accelerates towards the end of drying. However, we have observed using surface enhanced Raman spectroscopy (SERS) with gold nanoparticles that the deposition process at the contact line occurred in a short window of time that was akin to a phase transition and that was complete well before the drying of the droplet. Further, the concentration of nanoparticles at the time of deposition was the same irrespective of the initial concentrations studied, the value of which was calculated to have been on the order of 13 M.


Coffee-ring effect
Gold nanoparticles
Phase transition
Surface enhanced Raman spectroscopy


Comments are not moderated before they are posted, but they can be removed by the site moderators if they are found to be in contravention of our Commenting Policy [opens in a new tab] - please read this policy before you post. Comments should be used for scholarly discussion of the content in question. You can find more information about how to use the commenting feature here [opens in a new tab] .
This site is protected by reCAPTCHA and the Google Privacy Policy [opens in a new tab] and Terms of Service [opens in a new tab] apply.
Comment number 1, SUJAY PAUL: Jun 21, 2023, 06:54

In the abstract above, please read the concentration of the nanoparticles at the time of deposition (written in the last line) as 13 µM.
