High-throughput identification of crystalline natural products from crude extracts enabled by microarray technology and microED

27 March 2023, Version 1


The structural determination of natural products (NPs) can be arduous due to sample heterogeneity. This often demands itera-tive purification processes and characterization of complex molecules that may only be available in miniscule quantities. Microcrystal electron diffraction (microED) has recently shown promise as a method to solve crystal structures of NPs from nanogram quantities of analyte. However, its implementation in NP discovery remains hampered by sample throughput and purity requirements akin to traditional NP-discovery workflows. In the methods described herein, we leverage the resolving power of transmission electron microscopy (TEM) and the miniaturization capabilities of DNA microarray technology to address these challenges through the establishment of an NP screening platform, array electron diffraction (ArrayED). In this workflow, an array of HPLC fractions taken from crude extracts are deposited onto TEM grids in picoliter-sized droplets. This multiplexing of analytes on TEM grids enables 1200 or more unique samples to be simultaneously inserted into a TEM equipped with an autoloader. Selected area electron diffraction analysis of these microarrayed grids allows for rapid identification of crystalline metabolites. In this study, ArrayED enabled structural characterization of 14 natural products, including four novel crystal structures and two novel polymorphs, from 20 crude extracts. Moreover, we identify several chemical species that would not be detected by standard mass spectrometry (MS) or UV/Vis and crystal forms that would not be characterized using traditional methods.


electron diffraction
Natural Products

Supplementary materials

High-throughput identification of crystalline natural prod-ucts from crude extracts enabled by microarray technology and microED

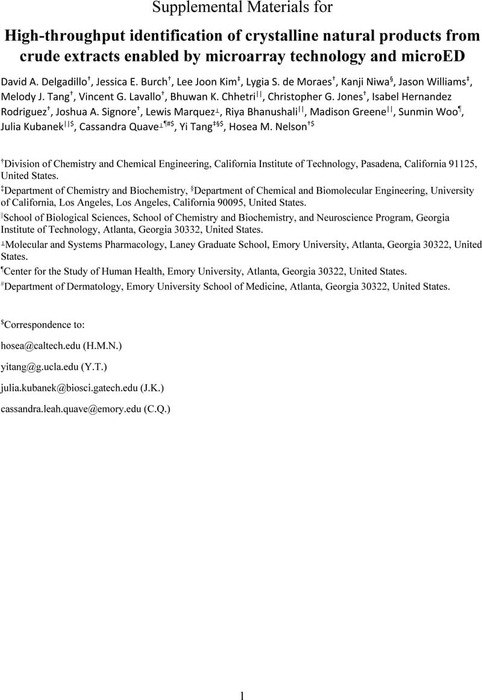

Supporting Information: Materials & Methods, General Procedures, Sample Preparation, and MicroED structural information
