Sandwiched Epitaxy Growth of Single-Crystalline Hexagonal Bismuthene Nanoflakes for Highly Selective Electrocatalytic CO2-to-formate Conversion

28 December 2022, Version 1
This content is a preprint and has not undergone peer review at the time of posting.

Abstract

Two-dimensional (2D) bismuthene material was predicted to possess intriguing physical and electrical properties, such as high-temperature quantum-spin Hall effect, topological edge state, high carrier mobility, and tunable band gap. However, epitaxial growth of single-crystalline 2D bismuthene nanoflakes inevitably requires a high vacuum environment, primarily due to the high surface energy constraints of Bi. Herein, we report the growth of 2D single-crystalline hexagonal bismuthene nanoflakes on Cu foil substrate at atmospheric pressure by chemical vapor deposition. Based on first-principles calculations, the structural transformation of Bi on Cu foil can be suppressed by introducing the top h-BN layer, which potentially compensates for the charge transfer from Bi to the Cu (1 1 1) surface. The sandwich structure is identified by cross-sectional SEM and EDS characterization, demonstrating that bismuthene nanoflakes are sandwiched between the h-BN film and Cu foil. Benefiting from the encapsulation of the top h-BN layer, bismuthene nanoflakes also exhibit excellent thermal stability in ambient air even after annealing at 500 °C for 10 min. For further practical application, bismuthene nanoflakes are utilized for electrochemical CO2 reduction reactions (CO2RR). These bismuthene nanoflakes demonstrate remarkable ability in converting CO2 to formic acid with a Faradaic efficiency of 96.3% at ‒1.0 V (vs. RHE) and exhibit great catalytic stability with a Faradaic efficiency of over 90% in 15 h CO2RR tests. The ultrathin 2D feature of as-prepared bismuthene nanoflakes may result in abundant CO2 adsorption sites and stabilize the intermediate *OCHO, finally favoring the formation of HCOOH. We provide an effective strategy to simultaneously synthesize and passivate 2D single-crystalline bismuthene nanoflakes towards CO2RR, which is expected to be applied to other 2D materials with strong metallic growth behavior.

Supplementary materials

Title
Description
Actions
Title

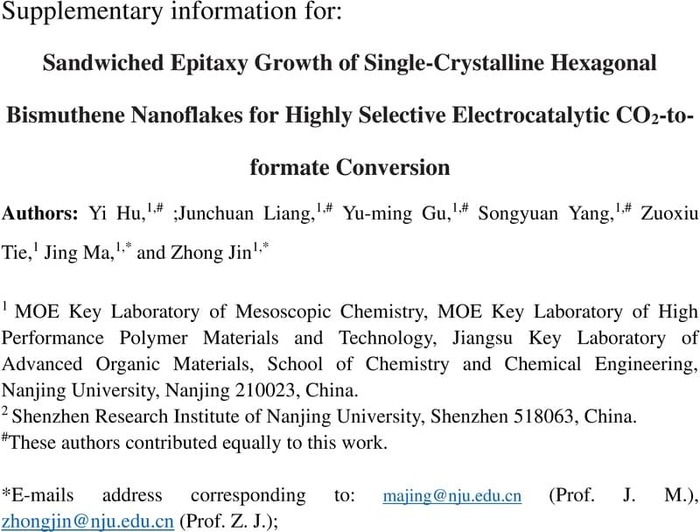

Supplementary information
Description
Supplementary information
Actions
