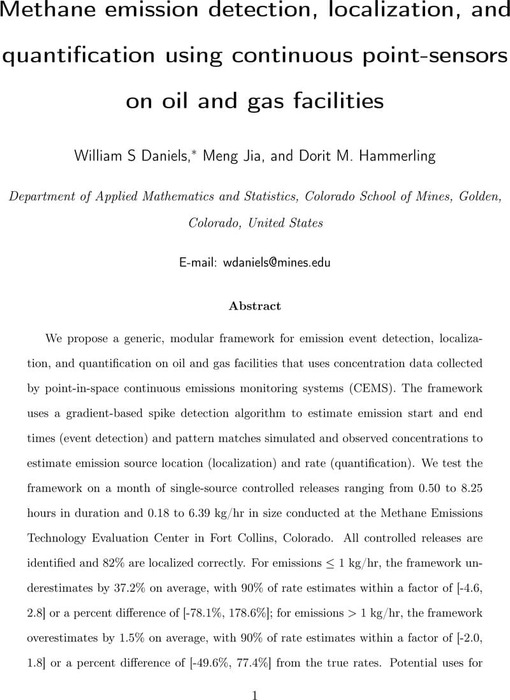

Methane emission detection, localization, and quantification using continuous point-sensors on oil and gas facilities

27 December 2022, Version 1
This content is a preprint and has not undergone peer review at the time of posting.

Abstract

We propose a generic, modular framework for emission event detection, localization, and quantification on oil and gas facilities that uses concentration data collected by point-in-space continuous emissions monitoring systems (CEMS). The framework uses a gradient-based spike detection algorithm to estimate emission start and end times (event detection) and pattern matches simulated and observed concentrations to estimate emission source location (localization) and rate (quantification). We test the framework on a month of single-source controlled releases ranging from 0.50 to 8.25 hours in duration and 0.18 to 6.39 kg/hr in size conducted at the Methane Emissions Technology Evaluation Center in Fort Collins, Colorado. All controlled releases are identified and 82% are localized correctly. For emissions < 1 kg/hr, the framework underestimates by 37.2% on average, with 90% of rate estimates within a factor of [-4.6, 2.8] or a percent difference of [-78.1%, 178.6%]; for emissions > 1 kg/hr, the framework overestimates by 1.5% on average, with 90% of rate estimates within a factor of [-2.0, 1.8] or a percent difference of [-49.6%, 77.4%] from the true rates. Potential uses for the proposed framework include near real-time alerting for rapid emissions mitigation and emission quantification for data-driven inventory estimation on production-like facilities.

Keywords

methane emissions
oil and gas
continuous emissions monitoring systems
event detection
localization
quantification

Supplementary materials

Title
Description
Actions
Title

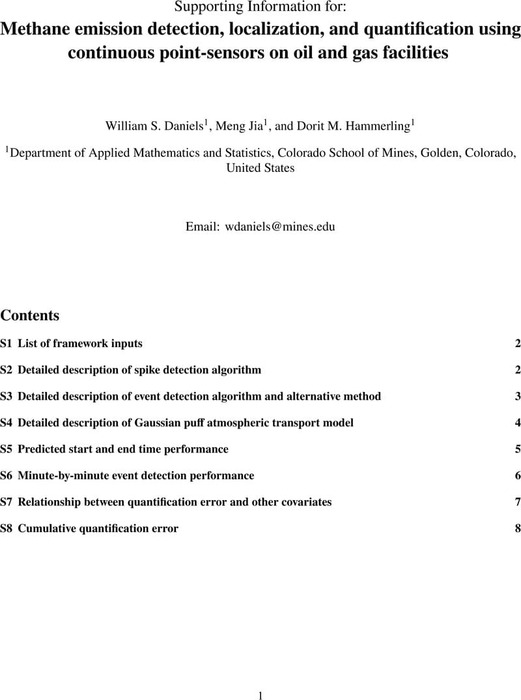

Methane emission detection, localization, and quantification using continuous point-sensors on oil and gas facilities - Supporting Information
Description
This document contains additional information about the spike detection algorithm and event detection, localization, and quantification framework proposed in the main text. The document also contains additional details about framework performance.
