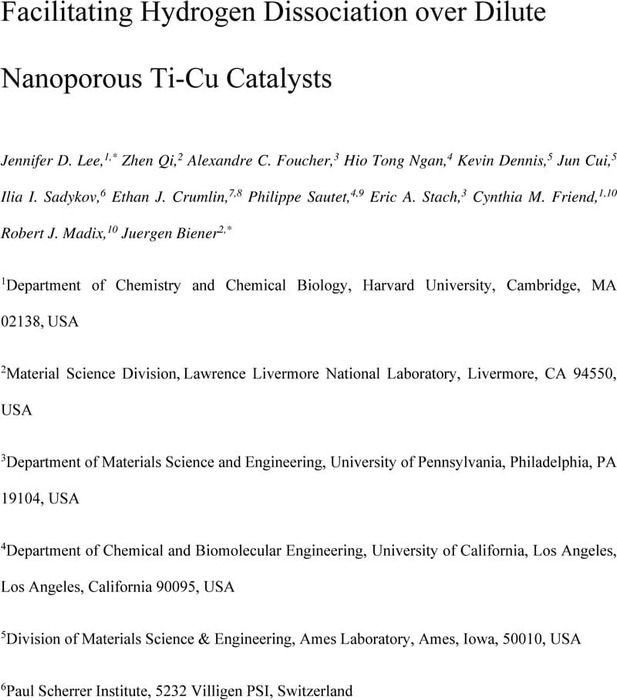

Facilitating Hydrogen Dissociation over Dilute Nanoporous Ti-Cu Catalysts



The dissociation of H2 is an essential elementary step in many industrial chemical transformations, typically requiring precious metals. Here, we report a hierarchical nanoporous Cu catalyst doped with small amounts of Ti (npTiCu) that increases the rate of H2-D2 exchange by approximately one order of magnitude compared to the undoped nanoporous Cu (npCu) catalyst. The promotional effect of Ti was measured via steady-state H2-D2 exchange reaction experiments under atmospheric pressure flow conditions in the temperature range of 300─523 K. Pretreatment with flowing H2 is required for stable catalytic performance and two temperatures, 523 K and 673 K, were investigated. The experimentally-determined H2-D2 exchange rate is 5-7 times greater for npTiCu vs. the undoped Cu material under optimized pretreatment and reaction temperatures. The H2 pretreatment leads to full reduction of Cu oxide and partial reduction of surface Ti oxide species present in the as-prepared catalyst as demonstrated using in-situ ambient pressure X-ray photoelectron spectroscopy and X-ray absorption spectroscopy. The apparent activation energy and pre-exponential factors measured for H2-D2 exchange are substantially different for Ti-doped vs. undoped npCu catalysts. DFT calculations suggest that isolated, metallic Ti atoms on the surface of the Cu host can act as the active surface sites for hydrogen recombination. The increase in the rate of exchange above that of pure Cu is caused primarily by a shift in the rate-determining step from dissociative adsorption on Cu to H/D atom recombination on Ti-doped Cu, with the corresponding decrease in activation entropy that it produces.

Version notes

Updated author affiliations and acknowledgments, and made editorial changes.


Supplementary material

Supporting Information
Additional data on the general preparation steps for nanoporous materials, XRD, HAADF-STEM, XPS, SEM, BET, XANES, EXAFS, EELS characterization studies, H2-D2 exchange and reaction order experiments, and DFT calculated binding energy shifts, energetic profiles, adsorption configurations and bond distances.
