Wide-field Surface-Enhanced Coherent Anti-Stokes Raman Scattering Microscopy

21 October 2021, Version 1
This content is a preprint and has not undergone peer review at the time of posting.

Abstract

Surface-enhanced Raman scattering (SERS) spectroscopy has been used extensively to study biology, chemistry, and materials. However, a point-by-point SERS mapping is time-consuming, taking minutes to hours for large-scale imaging. Here, we report a wide-field surface-enhanced coherent anti-Stokes Raman scattering (WISE-CARS) microscopy for monitoring nanotags in live cells and label-free detection of metabolic molecules. The WISE-CARS microscope achieves an imaging speed as fast as 120 frames per second for a large field of view of 130 microns X 130 microns. By spectral focusing of femtosecond lasers, a hyperspectral WISE-CARS stack of 120 frames can be acquired with a spectral resolution of 10 cm-1, where over 1 million Raman spectra are parallelly recorded within 0.5 seconds. As applications, we demonstrate time-lapse, 3D WISE-CARS imaging of nanotags in live cells as well as label-free detection of adenine released from S. aureus.

Keywords

wide-field microscopy
surface-enhanced coherent anti-stokes Raman scattering
3D cell imaging
bacteria detection

Supplementary materials

Title
Description
Actions
Title

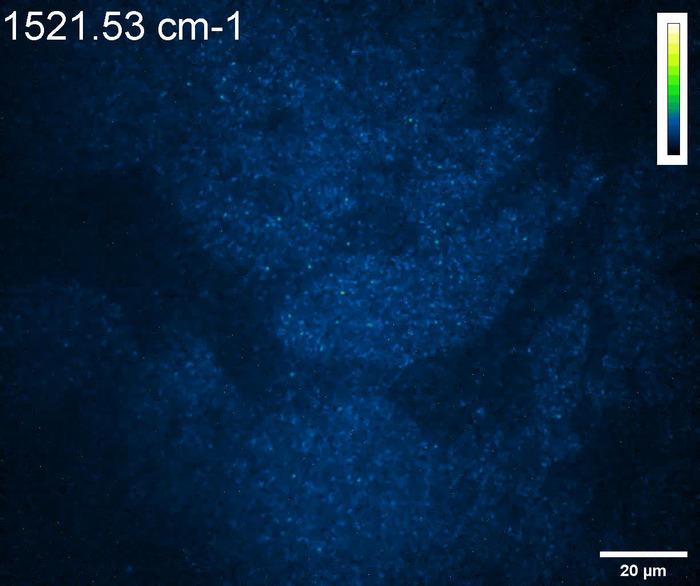

Video 1. Hyperspectral WISE-CARS imaging of Au NPs substrate.
Description
A hyperspectral SECARS imaging cube of Mpy adsorbed on aggregated Au NPs substrate
Actions
Title
Video 3. Hyperspectral WISE-CARS imaging of live cells.
Description
The hyperspectral SECARS spectra of Mpy nanotags in live cells.
Actions
Title

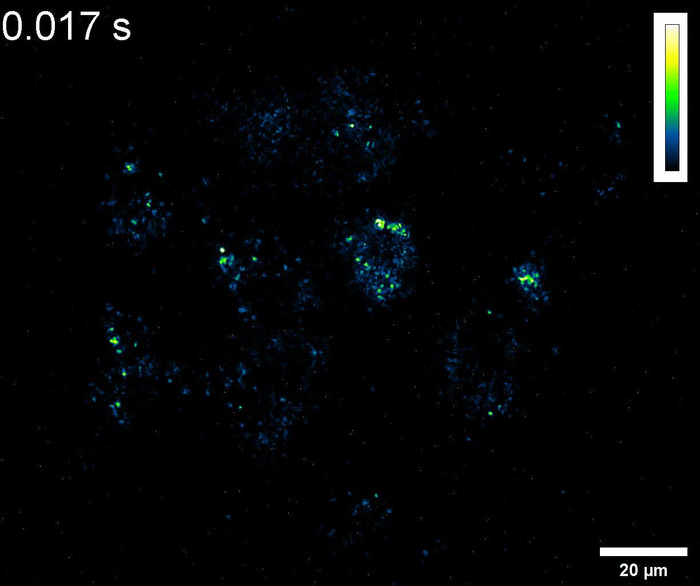

Video 2. Movements of nanotags in live cells
Description
60-frame video recorded to show the movements of nanotags inside a live cell during 1 s period
Actions
Title

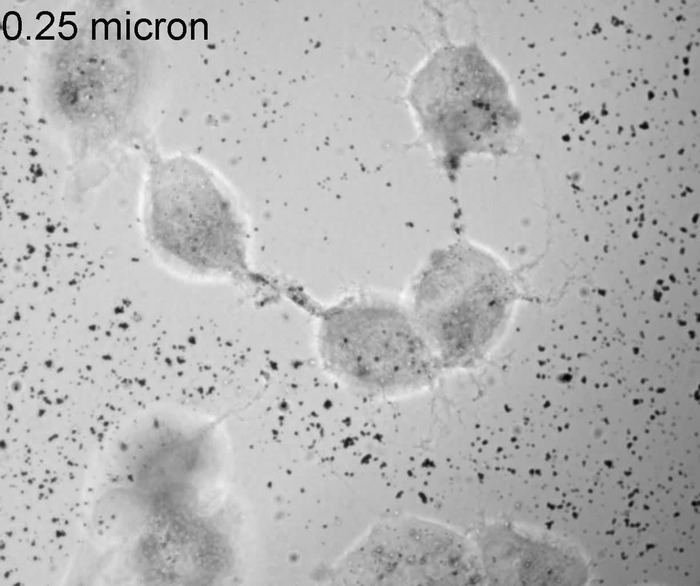

Video 4. 3D WISE-CARS imaging of live cells.
Description
Recorded bright views of T24 cells at different focus planes.
Actions
Title

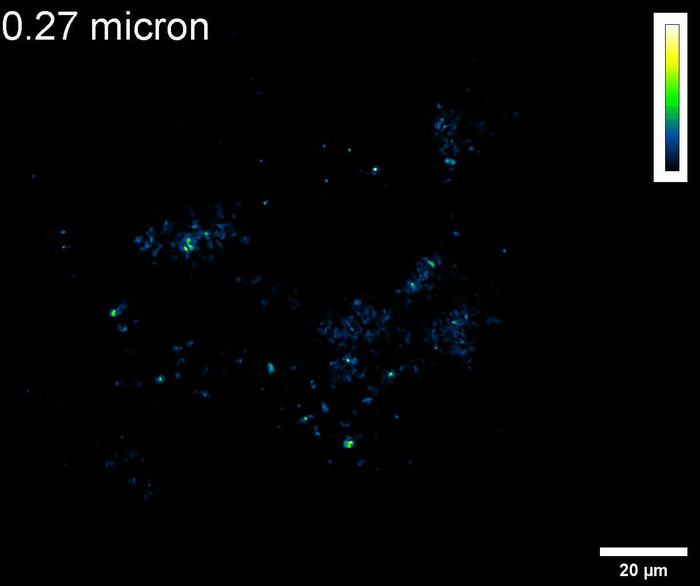

Video 5. 3D WISE-CARS imaging of live cells.
Description
SECARS imaging of Mpy nanotags distributed in T24 cells at different focus planes.
Actions
Title

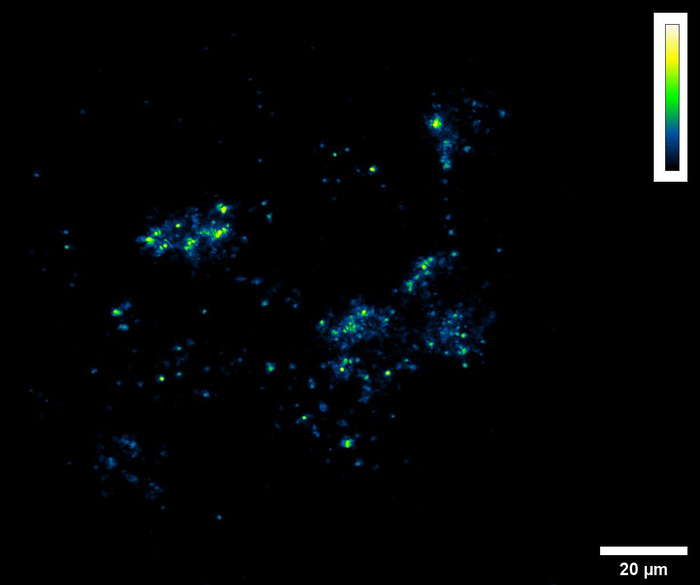

Video 6. 3D projection of nanotags in live cells.
Description
The 3D projection shows the 3D distributions of nanotags in live cells.
