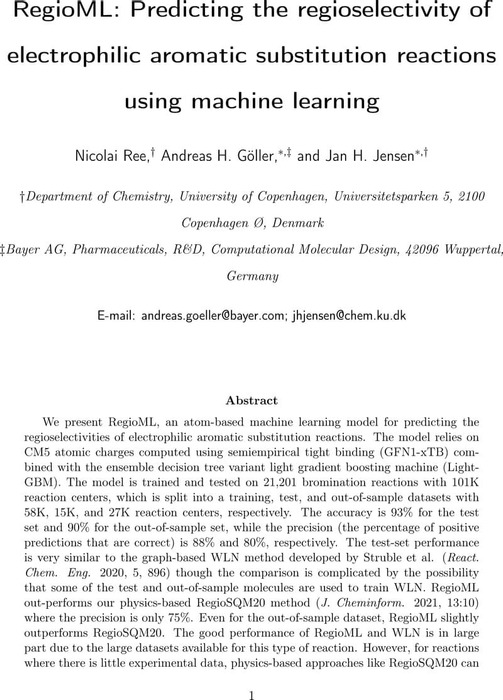

RegioML: Predicting the regioselectivity of electrophilic aromatic substitution reactions using machine learning

16 September 2021, Version 1
This content is a preprint and has not undergone peer review at the time of posting.


We present RegioML, an atom-based machine learning model for predicting the regioselectivities of electrophilic aromatic substitution reactions. The model relies on CM5 atomic charges computed using semiempirical tight binding (GFN1-xTB) combined with the ensemble decision tree variant light gradient boosting machine (LightGBM). The model is trained and tested on 21,201 bromination reactions with 101K reaction centers, which is split into a training, test, and out-of-sample datasets with 58K, 15K, and 27K reaction centers, respectively. The accuracy is 93% for the test set and 90% for the out-of-sample set, while the precision (the percentage of positive predictions that are correct) is 88% and 80%, respectively. The test-set performance is very similar to the graph-based WLN method developed by Struble et al. (React. Chem. Eng. 2020, 5, 896) though the comparison is complicated by the possibility that some of the test and out-of-sample molecules are used to train WLN. RegioML out-performs our physics-based RegioSQM20 method (J. Cheminform. 2021, 13:10) where the precision is only 75%. Even for the out-of-sample dataset, RegioML slightly outperforms RegioSQM20. The good performance of RegioML and WLN is in large part due to the large datasets available for this type of reaction. However, for reactions where there is little experimental data, physics-based approaches like RegioSQM20 can be used to generate synthetic data for model training. We demonstrate this by showing that the performance of RegioSQM20 can be reproduced by a ML-model trained on RegioSQM20-generated data.

Supplementary weblinks
