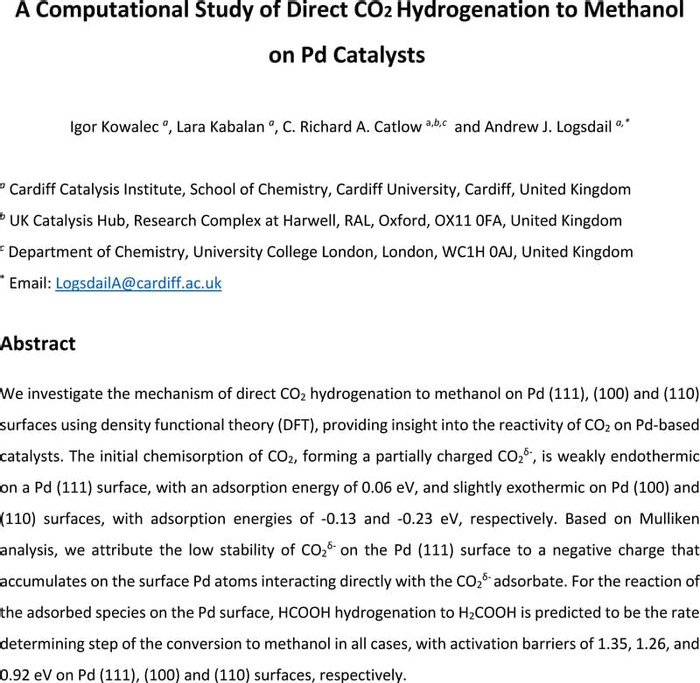

A Computational Study of Direct CO2 Hydrogenation to Methanol on Pd Catalysts

16 April 2021, Version 1
This content is a preprint and has not undergone peer review at the time of posting.


We investigate the mechanism of direct CO2 hydrogenation to methanol on Pd (111), (100) and (110) surfaces using density functional theory (DFT), providing insight into the reactivity of CO2 on Pd-based catalysts. The initial chemisorption of CO2, forming a partially charged CO2δ-, is weakly endothermic on a Pd (111) surface, with an adsorption energy of 0.06 eV, and slightly exothermic on Pd (100) and (110) surfaces, with adsorption energies of -0.13 and -0.23 eV, respectively. Based on Mulliken analysis, we attribute the low stability of CO2δ- on the Pd (111) surface to a negative charge that accumulates on the surface Pd atoms interacting directly with the CO2δ- adsorbate. For the reaction of the adsorbed species on the Pd surface, HCOOH hydrogenation to H2COOH is predicted to be the rate determining step of the conversion to methanol in all cases, with activation barriers of 1.35, 1.26, and 0.92 eV on Pd (111), (100) and (110) surfaces, respectively.


heterogeneous catalysis
CO2 hydrogenation to methanol
Palladium Catalysts
methanol synthesis routes

Supplementary materials

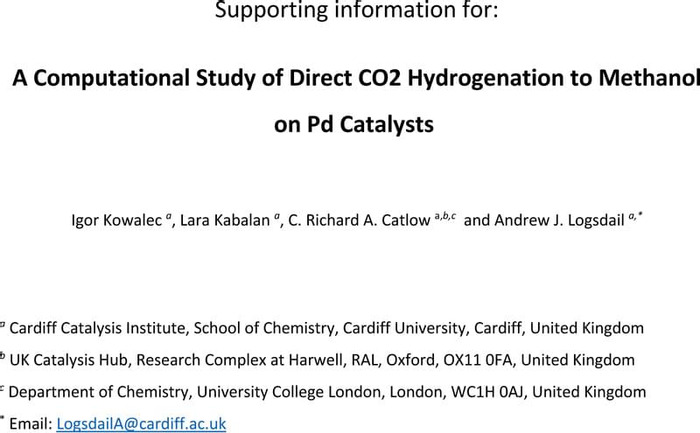

Supporting Information
