Abstract
Ion depletion in liquid electrolytes is widely accepted to promote
dendrite growth in metal anodes due to enhanced local electrical field and magnified
concentration fluctuation at the electrode/electrolyte interface. Here we
report unexpected opposite behaviors in solid polymer electrolytes, showing that
ion depletion leads to uniform lithium deposition. Such stabilization originates
from ion depletion-induced phase transformation, which forms a new PEO-rich but
salt/plasticizer-poor phase at the lithium/electrolyte interface, as unveiled by
stimulated Raman scattering microscopy. This new phase leads a significantly
higher Young’s modulus (~2-3 GPa) than the bulk polymer electrolyte (< 10
MPa), which effectively suppresses dendrite growth. Further battery tests show
that LiFePO4/PEO/Li cells with such ion depletion-induced phase
transformations can be reversibly cycled for 200 times, while cells without such
transformation fail within only ten cycles, demonstrating the effectiveness of this
strategy to stabilize the lithium anode.
Content

Supplementary material

Suppl Movie 6

Suppl Movie 5

Suppl Movie 4

Suppl Movie 3

Suppl Movie 2

Suppl Movie 1

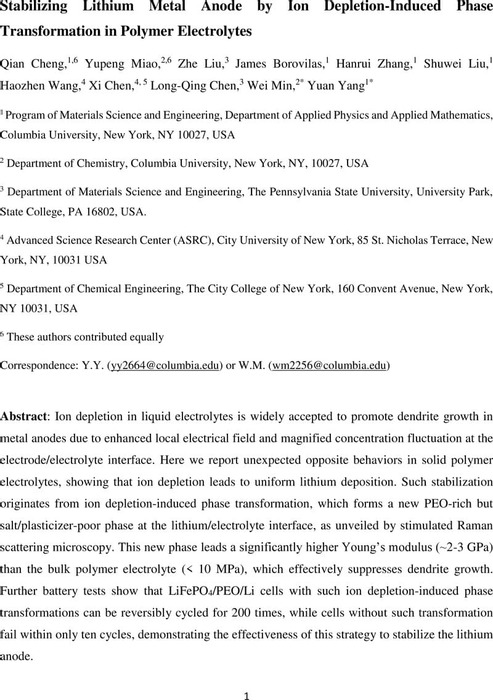

Stabilizing Lithium Metal Anode by Ion Depletion-induced Phase Transformation in SPE for nature materials
SI for Stabilizing Lithium Metal Anode by Ion Depletion-induced Phase Transformation in SPE for nature materials
