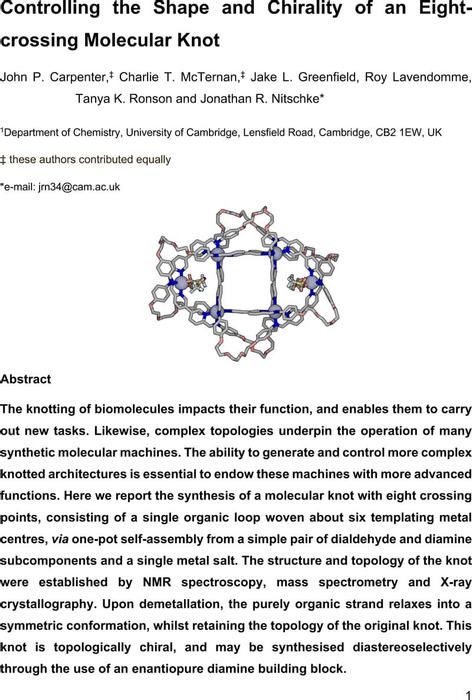

Controlling the Shape and Chirality of an Eight-crossing Molecular Knot

22 October 2020, Version 1
This content is a preprint and has not undergone peer review at the time of posting.

Abstract

The knotting of biomolecules impacts their function, and enables them to carry out new tasks. Likewise, complex topologies underpin the operation of many synthetic molecular machines. The ability to generate and control more complex knotted architectures is essential to endow these machines with more advanced functions. Here we report the synthesis of a molecular knot with eight crossing points, consisting of a single organic loop woven about six templating metal centres, via one-pot self-assembly from a simple pair of dialdehyde and diamine subcomponents and a single metal salt. The structure and topology of the knot were established by NMR spectroscopy, mass spectrometry and X-ray crystallography. Upon demetallation, the purely organic strand relaxes into a symmetric conformation, whilst retaining the topology of the original knot. This knot is topologically chiral, and may be synthesised diastereoselectively through the use of an enantiopure diamine building block.

Keywords

Knot
Self-Assembly
Grid
Topology
Chirality
metal-organic
supramolecular

Supplementary materials

Title
Description
Actions
Title

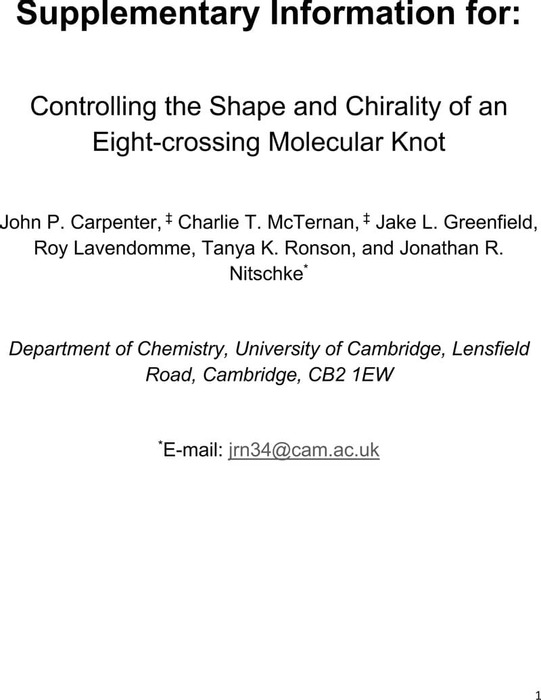

Supplementary Information - Controlling the Shape and Chirality of an Eight-crossing Molecular Knot
Description
Actions
